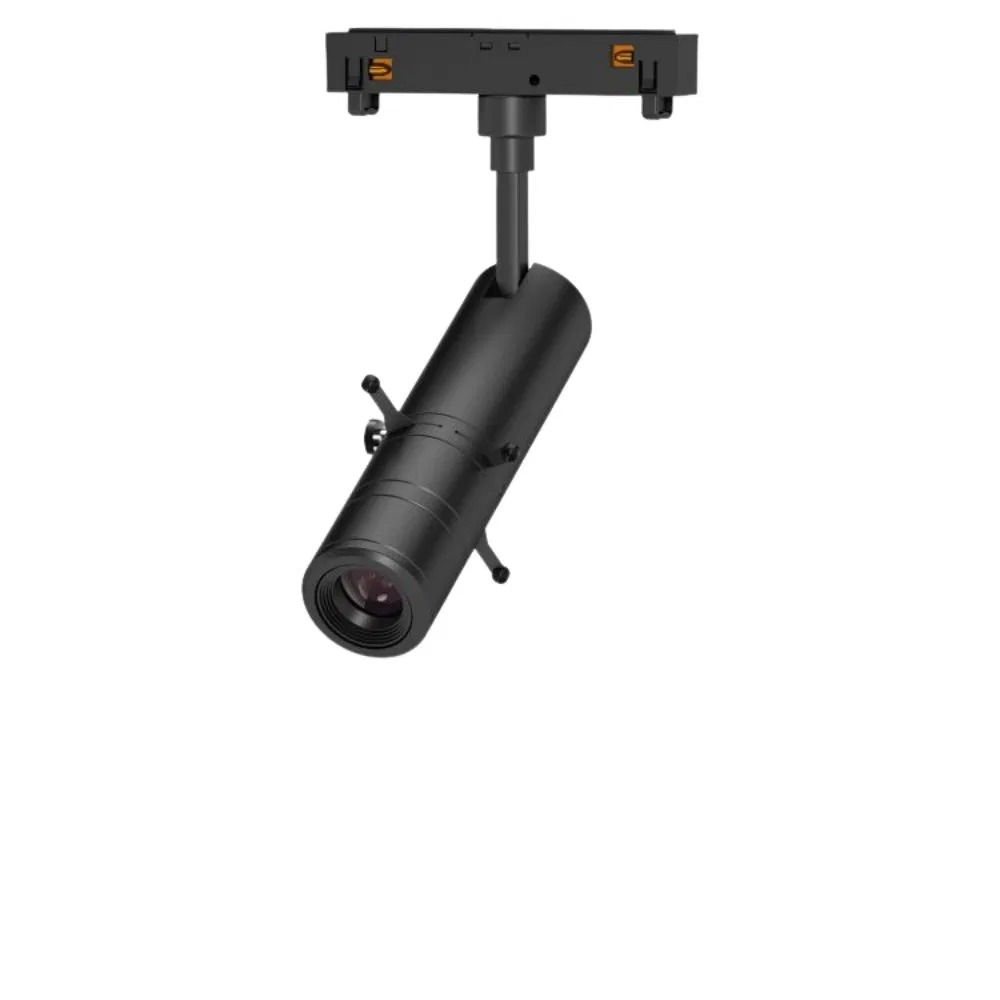

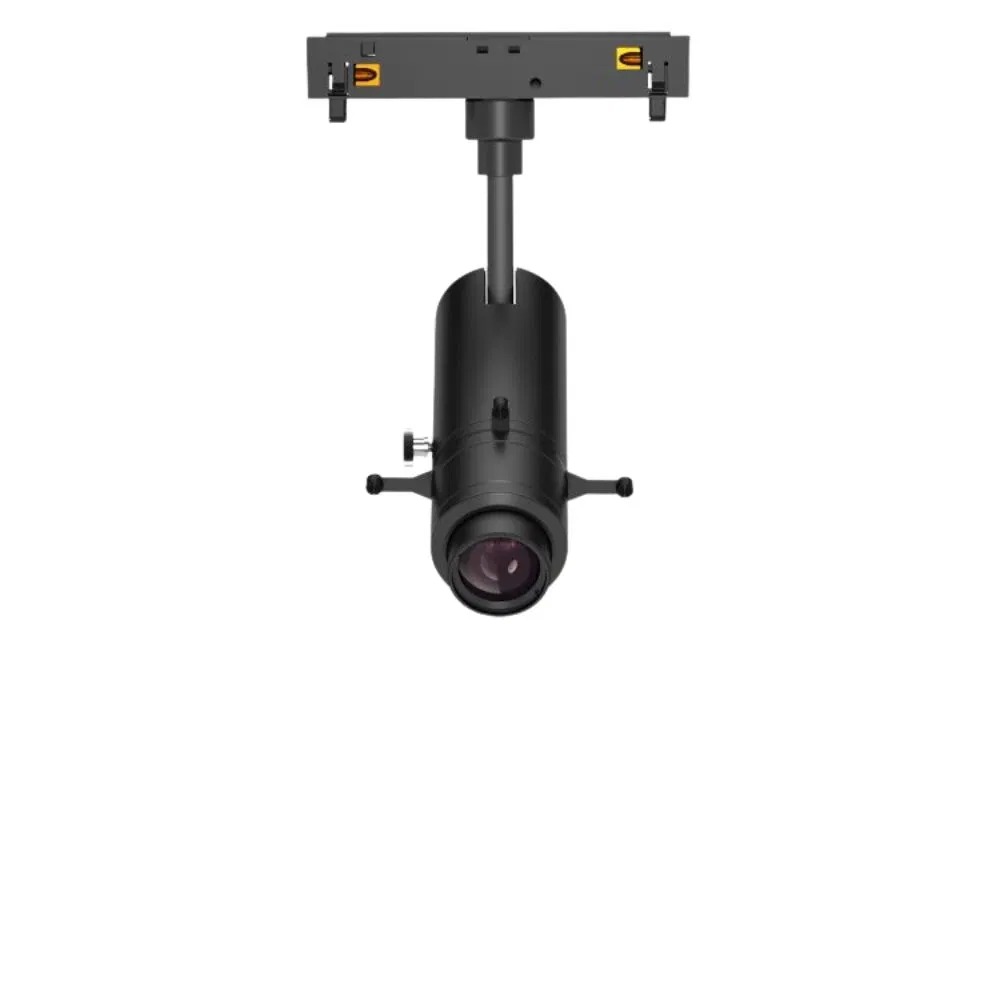

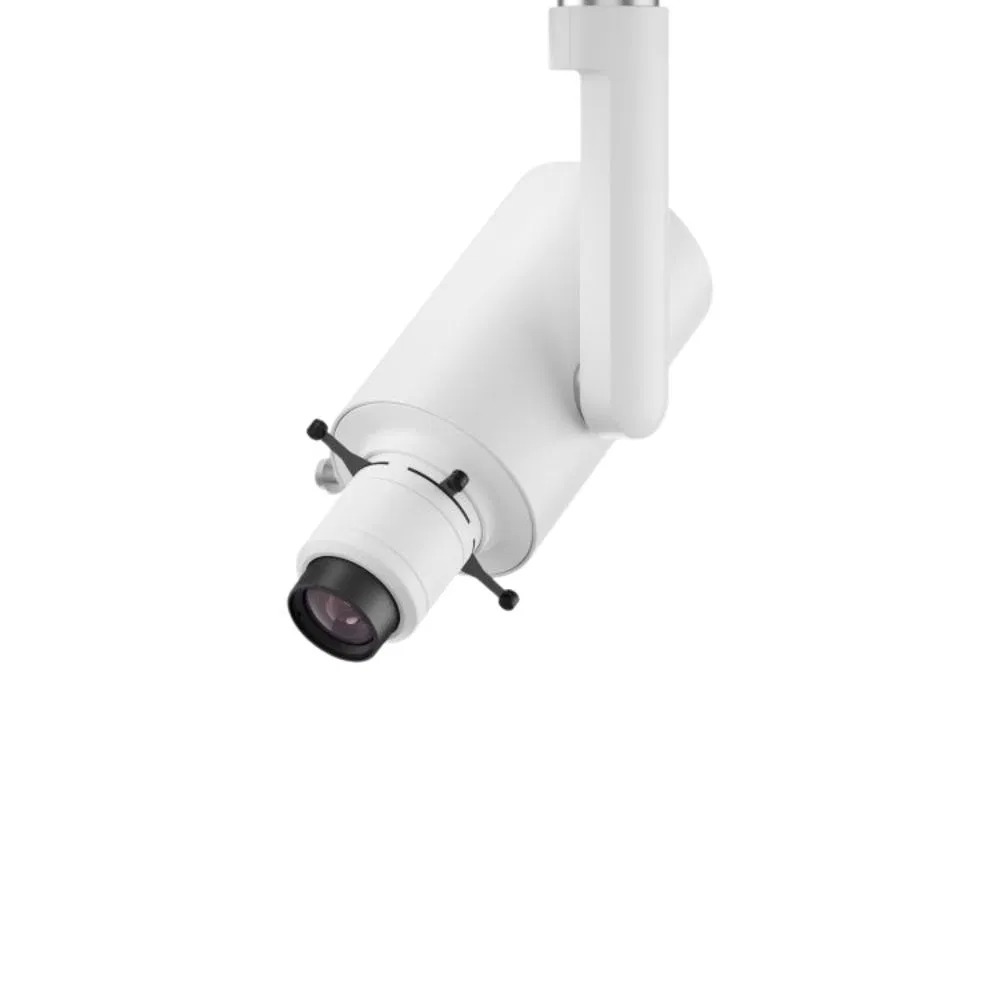

Kingfisher 2 Series D0325K-1855 LED Contour Track Light
Factory Price 3W 2700K-4000K ultra-high luminous efficiency LED shapeable contour track light designed for art galleries and museums.

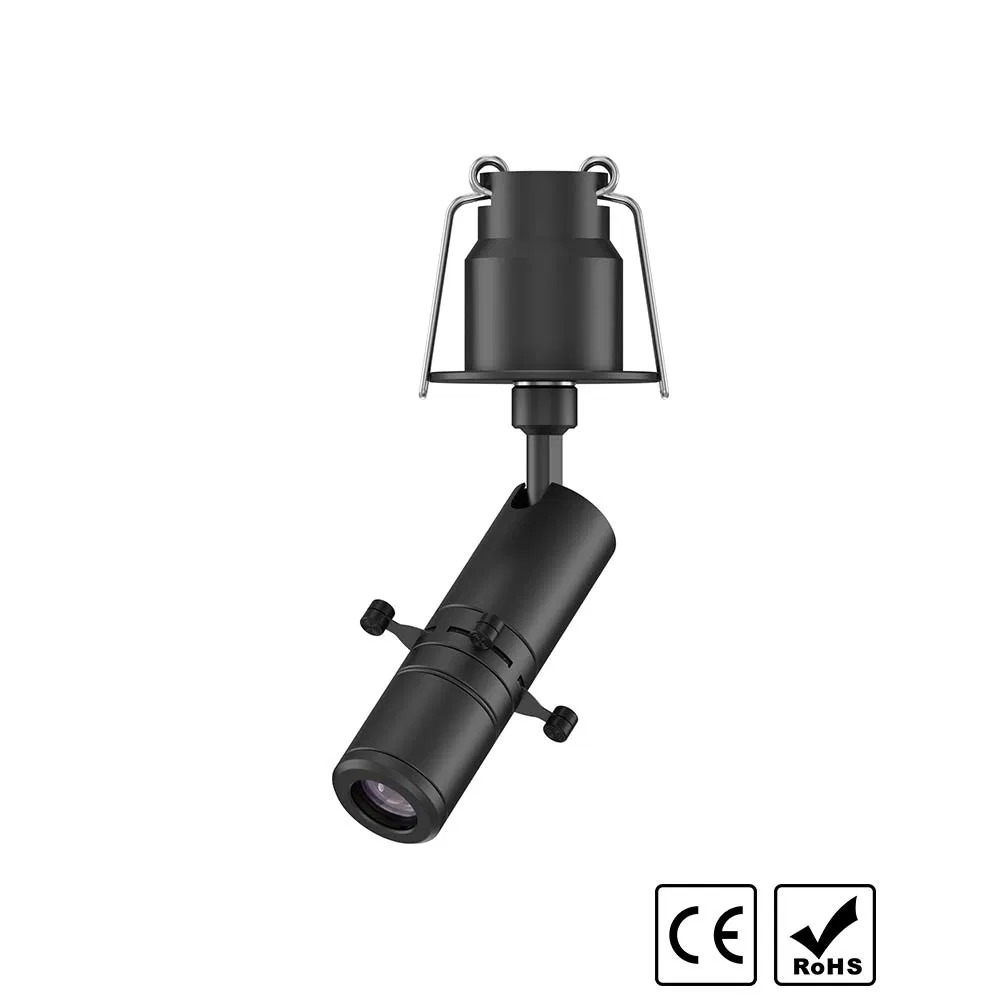

The Kingfisher 2 Series D0325K-1855 is a mini embedded contour spotlight featuring a 3W LED with 35-45LM output and superior color rendering (Ra≥97). Its fixed 55° wide-angle optical lens delivers uniform illumination with ≤0.6% TV distortion, while the ultra-compact Ø18mm design (0.12kg) allows seamless integration into architectural spaces. The spotlight supports 2700K/3000K/4000K color temperatures and offers precise millimeter-level spot shaping for museum-quality lighting. With a projection sharpness of 0.01/1 and UGR<19 glare control, it's ideal for accent lighting in galleries, retail displays, and hospitality environments. The durable construction includes a 9-piece optical lens system and supports vertical 90° rotation for flexible positioning in embedded installations.
Key Features
- Ultra-Compact Design: At just 0.12kg with Ø18mm size, this spotlight discreetly integrates into ceilings/walls while delivering professional lighting performance.
- Museum-Grade Optics: 9-piece lens system ensures ≤0.6% distortion and 0.01/1 sharpness for flawless artifact/artwork illumination (Ra≥97).
- Flexible Positioning: Supports 90° vertical rotation for precise directional control in embedded installations.
- Adaptive Color Options: Switch between 2700K/3000K/4000K CCT to match ambient lighting needs in galleries or retail spaces.
- Glare-Free Lighting: UGR<19 rating eliminates eye strain, ideal for long-exposure environments like museums.
- Energy Efficient: 3W low-power consumption (35-45LM) reduces energy costs while maintaining premium lighting quality.
Technical Specifications
| Item No. | D0325K-1855 |
| Power | 3W |
| Luminous Flux (3000K) | 70-75LM |
| Beam Angle (Lens Model) | Fixed 55° (1855) |
| Ra | 97 |
| Input Voltage (AC/DC) | 48VDC |
| Color of Housing | Black, White |
| Dimension (mm) | Recessed housing ¢35*H35, housing ¢18*H50 |
| Track Type | 2/3/4/6 wires/surface mount |
Engineering Advantages
Cold Forging Integrated Radiator Design
A radiator made of 1070# pure aluminum and molded by molding pressure. It has high thermal conductivity, low-temperature differences, low light failure, and long service life. Thermal conductivity 226W/m.K
360° Manual Rotation Design
Loosen the manual screw and turn the lens to achieve the 360° spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.
High-Definition Optical Lens Design
It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc. A new optical path specially designed for COB light sources.
Optical-Grade Variable Aperture Design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.
Multi-Layer Dry Damping Design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.
Linear Zoom Enhancement
Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.
Product Parameters
Application Scenarios

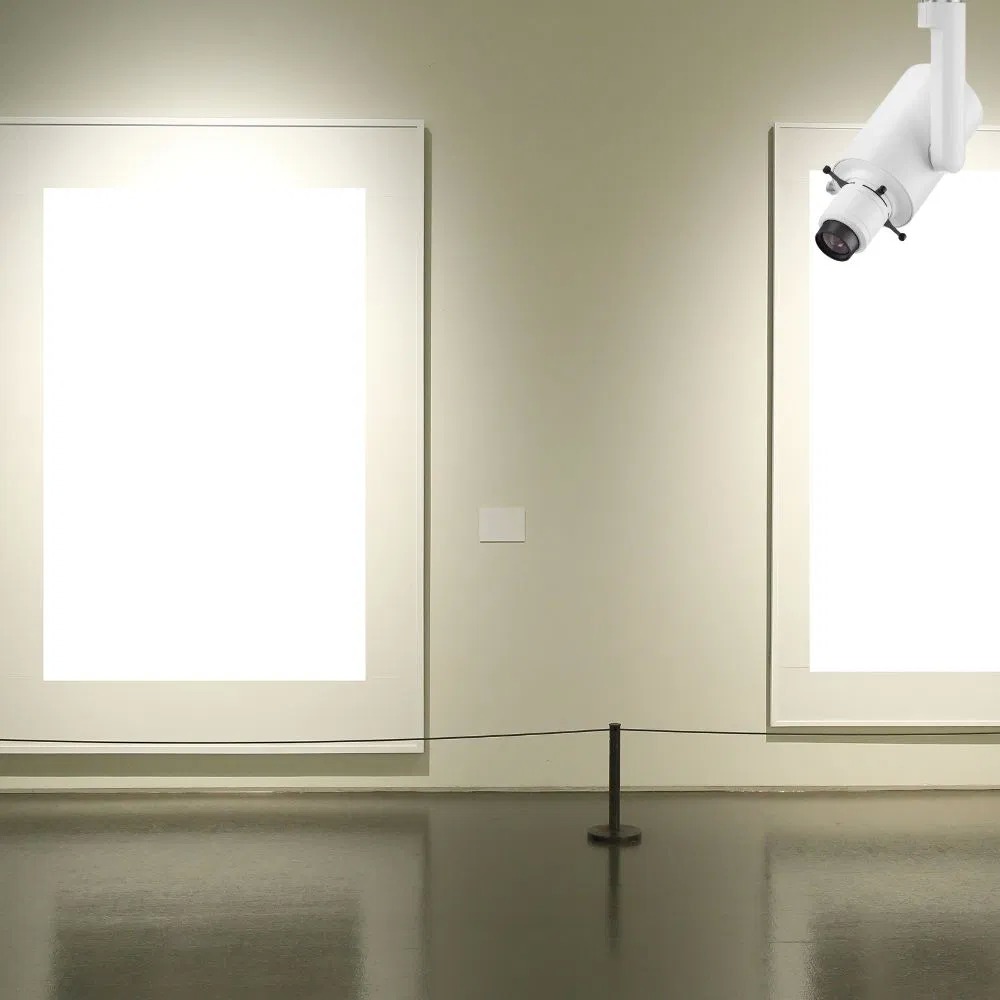

Museum & Gallery Lighting
The D0325K-1855's ultra-precise 55° beam (Ra≥97) and glare-free output (UGR<19) provide perfect conservation-grade illumination for delicate artifacts and paintings.
Luxury Retail Displays
Ideal for jewelry/watch showcases with its crisp 0.01/1 sharpness and compact size, creating dramatic product highlights without distortion.
Premium Hospitality Lighting
Discreetly embeds in hotel corridors, lobbies and restaurants, offering tunable white temperatures (2700K-4000K) for mood lighting.
Architectural Detail Lighting
The Ø18mm micro-design enables hidden accent lighting of ceiling coves, wall niches and architectural features in high-end spaces.
Residential Art Lighting
Perfect for homeowners to professionally illuminate private art collections with museum-quality, shadow-free lighting.
Boutique Commercial Spaces
Fits perfectly in high-end salons, galleries and small luxury stores where space is limited but lighting quality is paramount.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on LED light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for LED light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
